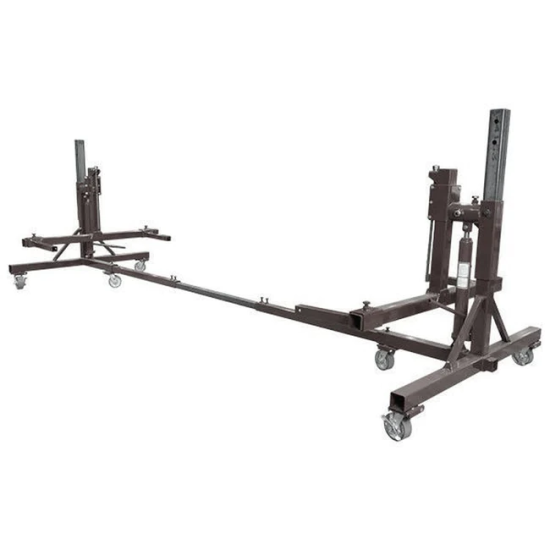

ATW AT-Elite-BS Rotisserie - Bare Steel

The AutoTwirler ELITE is the original height adjustable rotisserie model. The hydraulic jacks will allow you to pick the car body or frame up from 20" off the ground. The base is fully welded together for strength and long term durability.

NOTE: This is the BARE STEEL MODEL - IT IS AVAILABLE POWDER COATED RED OR BLUE - CALL FOR PRICING

The balancer is done with a 3/4" Acme rod with a real side thread, made fro lifting and used as a screw jack. Note that the Acme thread is a wide thread which is formed and not cut; it is made for lifting, unlike all-thread. The weight is secured by L and W brackets. We use A325 structural grade bolts, on all of our equipment to prevent stripping out or damage.

3,000 lbs. height adjustable model made of 3" square tubing. The horizontal member of the swing arm is 3/16" think.
20" Minimum Mounting Height, 14" with casters removed
4 - 16" Mounting Arms
3 piece telescoping center bar allowing 19' of extension
Six (6) - 5" Heavy duty poly on cast iron rated at 880 lbs. each, includes 4 caster locks
Weight - 525 lbs. Width - 63", Height - 58", Storage - 72" z 30" x 54"
